Area light AL2

Dimmable Icon grey.jpg
IP 65 Icon grey.jpg
UL listed Icon grey.jpg
DLC Icon Premium.jpg
CCT selectable orange black.png
wattage selectable orange black.png

CCT Selectable       Wattage selectable

Application

The AL2 Series LED Shoebox Area Light is a general-purpose outdoor luminaire designed for reliable, cost effective, high-output area lighting. It features field-selectable wattage options of 150W/120W/100W, 240W/200W/150W or 300W/240W/200W, along with CCT selectability (3000K / 4000K / 5000K) to adapt to different site requirements. The fixture is standard in 120–277V and has options for 277–480V input, includes 0–10V dimming, and is available in bronze die-cast aluminum housing for effective thermal dissipation. This model offers fixed type III distribution and comes standard with a premium Sosen driver and 20KV surge protector for enhanced durability and longevity.



Ideal for outdoor area lighting where consistent illumination and flexibility are required, the AL2 Series is well suited for parking lots, roadways, and general industrial outdoor environments. Its performance makes it a strong choice for medium-high height pole installations as well as new construction projects, providing dependable lighting coverage across open exterior spaces.

Pic 1 detourded.png
Features

* CCT: color temperature selectable 3K, 4K, 5K

* Adjustable power:

80, 100, 150W for the 25LS-27

80, 100, 150W for the 25LS-48 model

150, 200, 240W for the 41LS-27 model

200, 240, 300W for the 51LS-27 model

200, 240, 300W for the 51LS-48 model

* LED chips 2835, IP protected

*  Power factor > 0.90

* CRI > 80

* Viewing angle: Type III

* Surge voltage capability > 20KV

* 149.6 to 180.5 lumens per watt

* Long-life LEDs provide 50,000 hours of operation

* Universal 100-277 AC voltage (50-60Hz) is standard

* 277- 480V available on the AL2-25LS and AL2-51LS models

* 0-10 V dimming capability is standard

* Integrated sensor base

Warranty & Listing

* UL listed

* DLC premium listed

* IP65 “wet Location” rated

* Operating temperatures from -40°F to 122°F

* 5-year warranty on all electronics and housing

Dimensions
dimension 150w.png

25LS-27 and 25LS-48 Models

dimension 240w.png

41LS-27 Model

dimension 300w.png

51LS-27 and 51LS-48 Models

Mounting Options

Direct Mount


Trunnion

150W SF2.png

Slip Fitter

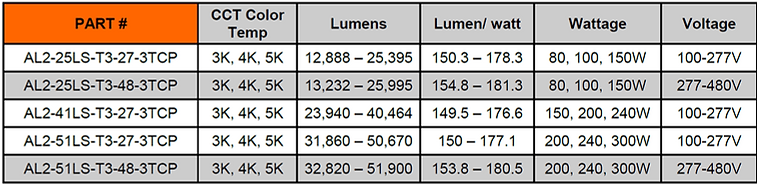

Ordering Information
Accessories info orange.png
ordering table orange.png

Spec sheet
