Traditional Wall Packs CCT and wattage selectable

Dimmable Icon grey.jpg
Wet location Icon grey.jpg
FCC icon grey.jpg
UL listed Icon grey.jpg
DLC Icon Premium.jpg
Application

This TWP is a series of premium, rugged, and durable LED wall packs, which are perfect for outdoor perimeter and area lighting. The housing is made of cast aluminum and powder painted in bronze polyester for a long-lasting finish. Installing and maintaining the door is easy due to its side-hinged design. A one-piece gasket seals the castings against external contaminants.



This wall packs come standard with a 5 year warranty and a kelvin selectable switch located inside allowing users to switch between 3000K, 4000K and 5000K. They are also wattage selectable 30W, 40W, 60W for the TWP-60S and 80W, 100W, 120W for the TWP-120S.



A combination of reflector and refractor technology provides improved illumination and longer throw distance, allowing light to be directed to specific areas. The refractor is made of high-quality polycarbonate and carefully engineered to enhance light extraction, creating a radiant luminaire. A UV-stabilized polycarbonate lens provides better visibility and vandal resistance.

Pic 1.png
Features

* Tunable CCT 3K, 4K and 5K

* TWP-60S:  127 to 140 Lumens

* TWP-120S: 127 to 140 Lumens

* Wattage selectable:  30W, 40W, 60W TWP-60S

* Wattage selectable:  80W, 100W, 120W TWP-120W

* Premium Sosen driver on the 120-277AC voltage models - Lumiled LED SMD 2835

* Universal 120-277 AC voltage (50-60Hz) is standard

* 200-480 AC voltage (50-60 HZ ) available on the 120W model.

* A 20KV Surge protector is included on the 120-277 AC models

* Power factor > 0.90, Total harmonic distortion < 15%

* Beam Angle: 50% +/- 15%

* Color rendering index > 80

* Die cast aluminum housing with dark bronze, powder coat paint - Stripe glass lens

* Factory installed Emergency Driver on the 120-277AC 120W model available

* Easy installation in new construction or retrofit

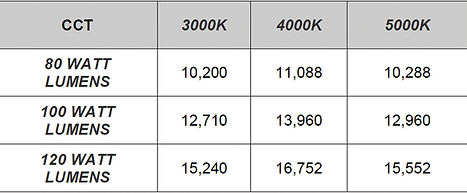

LumensTable Wall Pack

Lumens table.png
watt select switch and pics.png
Warranty & Listing

* UL Listed for wet locations

* DLC premium Listed

* IP 65 rated  sealed with silicone ring

* 5-year warranty on all electronics and housing

* Operating temperatures from -40°F to 120°F

* Storage temperature from -40° F to 158°F

5 year warranty no background.png
Dimensions
Ordering Information
ordering accessories.png

Download Spec sheet
