LEGACY 2 Area light CCT

Application

This premium architectural LED area light is designed to illuminate parking areas, pathways, building facades, loading docks, and various other large-scale site applications. With multiple mounting options, it is a versatile solution for flood, pole, ground, and wall-mounted lighting. This series is offered in 3-way CCT selectable 3K, 4K, 5K and wattage selectable 100W, 120W, 150W and 200W, 240W, 300W.



The die-cast aluminum body and integrated driver provides structural integrity and seamless light distribution superior to edge-lit panels. This product is also available with an integrated emergency backup driver.



This area light comes with a 5 year warranty and 50,000 hours from the date of delivery to the end-user, covering light output, color stability, and driver performance.



An independent laboratory tests our lights and LED components to ensure they meet the IESNA LM-79 and LM-80 standards. LED color temperature is warrantied to shift no more than 180K over the standard warranty period. Correlated Color Temperature (CCT) follows the guidelines set forth in the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Features

* CCT Selectable 3K, 4K, 5K

* Wattage selectable

* 25LS-27 and 52LS-27 are 100-277 AC voltage (50-60 Hz)

* 25LS-48 and 52LS-48 are 277-480 AC voltage (50-60 Hz)

* Philips Lumileds LED chips and premium SOSEN driver

*Integrated sensor receptacle

* Die cast aluminum housing with 2 mil dark bronze powder coat finish and heat resistant polycarbonate lens. The light distribution is field adjustable

* Power factor > 0.90

* 20KV surge protector

* EPA: 2.45 Ft2

* Total harmonic distortion <20%

* Color rendering Index >80

* Wireway enclosure is sealed with a water-tight, silicone rubber gasket

* 0-10V dimmable

* Optional occupancy sensor: ANT-5-4T sold separately

* Integrated sensor receptacle

* The light distribution is field adjustable

Performance table CCT orange.png
Warranty & Listing

* UL listed

* DLC premium listed

* IP65 “wet Location” rated

* Flicker free per IEEE 1789-2015 (no observable adverse effects of flicker at 100% light output level)

* 5-year warranty on all electronics and housing

5 year warranty no background.png

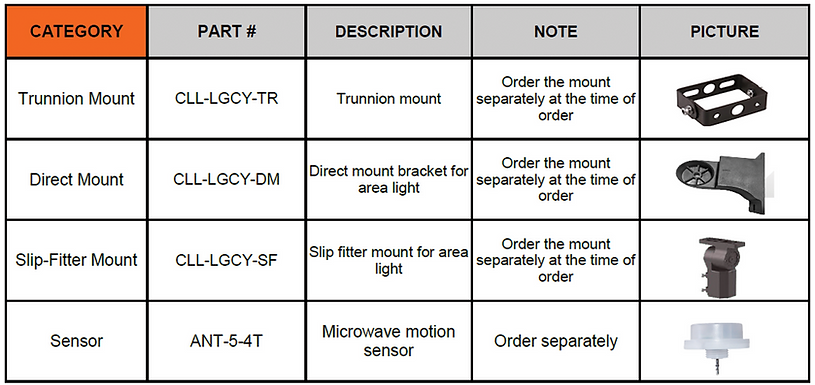

Mounting options & Dimensions
Dimensions slip fitter HV.png
Dimensions direct mount HV.png
Dimensions trunnion HV.png

* Trunnion and Slip-fitter mounting accessories are adjustable up to 90 Degrees in both directions

Ordering Information

Spec sheet Legacy 2 CCT
