Post Top LED Light CCT

Dimmable Icon grey.jpg
IP 65 Icon grey.jpg
FCC icon grey.jpg
ETl Icon grey.jpg
DLC Icon Premium.jpg
Application

This versatile lighting solution is ideal for illuminating parking lots, pathways, and public parks, providing bright, efficient lighting for safety and visibility.

It can also be used in commercial spaces like shopping centers or campuses to enhance nighttime navigation and security.

Its customizable wattage and color temperature options make it suitable for various environments, ensuring optimal performance in diverse settings.



This post Top Light is designed to replace traditional metal halide lights, has high performance and an operating life of 50,000 hours while consuming more than 80% less energy. It is Wattage selectable: 20, 30, 40, 60W and 80, 100, 120, 150W. There are three Kelvin settings available for each light: 3K, 4K, and 5K.  A universal voltage of 100-277 AC (50-60 Hz) is standard. It comes with a die cast aluminum housing, painted black and an integrated photocell. It is also dimmable Suitable for mounting on 2 7/8-inch posts. This Post Top light comes with a 5 year warranty.



An independent laboratory tests our lights and LED components to ensure they meet the IESNA LM-79 and LM-80 standards. LED color temperature is warrantied to shift no more than 180K over the standard warranty period. Correlated Color Temperature (CCT) follows the guidelines set forth in the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

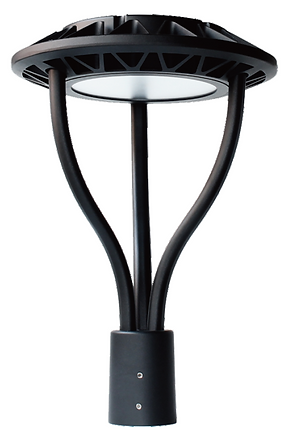

Pic 1.png
Features

* Selectable 3000K, 4000K, 5000k color temperature

* 4-way Selectable wattage 20/30/40/60W and 80/100/120/150W

* 130 to 132 lumens per watt 20/30/40/60W

* 130 to 132 lumens per watt 80/100/120/150W

* Long-life LEDs provide 50,000 hours of operation

* Universal 100-277 AC voltage (50-60 Hz)

* 0-10V dimmable

*  Power factor >0.90

* THD < 20%

* Color rendering Index > 72

* Viewing angle: 120 degrees

* Heavy die-cast aluminum alloy housing with powder-coated finish

* High quality tempered glass optics

* Black housing, anti-salt treatment.

* High brightness lumileds LED chips

* Metal Halide equivalent:

20W: 40-60 MH/HPS ; 30W: 60-100W MH/HPS ; 40W:100-120W MH-HPS ; 60W: 120-200W MH/MPS

80W: 160-220 MH/HPS ; 100W: 220-260W MH/HPS ; 120W:280-360W MH-HPS ; 150W: 360-450W MH/MPH

Photocell option

pic 1.png
Warranty & Listing

* ETL

* DLC premium listed

* IP 65 rated

* Operating temperatures from -4°F to 113°F

* Storage temperature from -4° F to 158°F

* 5-year warranty on all electronics and housing

5 year warranty no background.png
Mounting Options

* Insert the lamp into the square pole of the corresponding size,  and connect the wire to tighten the screw.

Dimensions
Ordering information

Download Spec sheet
Post Top LED Light
