Selectable Tubes T8XF
The Selectable Hybrid LED Tube (A+B) offers a flexible, energy-efficient, providing compatibility with both ballast-operated and ballast-bypass installations. This hybrid design allows the tube to operate with an existing compatible fluorescent ballast or, when desired, be installed directly to line voltage with the ballast removed or bypassed. The A+B configuration provides contractors and facility managers with greater installation flexibility.
These tubes features 4ft and 8ft, 5-field CCT selectable options, allowing users to customize the lighting environment to their preference. Additionally, it offers a 5-wattage selectable feature, providing flexibility in adjusting the brightness level. These options enable users to tailor lighting conditions to suit different settings and requirements, ensuring optimal ambiance and energy efficiency.
With a rated life of 50,000 hours, these tubes are built to last by making it a reliable and cost-effective solution for a wide range of applications. It carries a 5 year warranty.
* CCT: color temperature selectable 35K, 4K and 5K, 57K and 65K
* Adjustable power:
10W, 12W, 15W, 18W, 24W for the 4 ft models
24W, 30W, 36W, 42W, 48W for the 8ft models
* 150 to 163 lumens per watt
* Long-life LEDs provide 50,000 hours of operation
* Type A+B ( Hybrid with or without a ballast)
* 100-277V input double ended when ballast is bypassed
* Compatible with most instant and programmed-start electronic T8 ballasts
* Easy installation in new construction or retrofit
* Operating Temperatures -4°F to 131°F
* Frosted cover
* DLC 5.1 premium listed
* ETL Listed
* Damp location
* FCC Part 15, class A
* Operating Temperatures -4°F to 131°F
* 5-year warranty on all electronics and housing

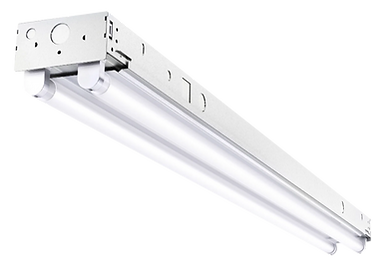

Tube ready Fixture LFRX
The Tube Ready Fixture is designed to provide maximum flexibility for commercial and industrial LED applications. Available in 4-foot and 8-foot configurations, these fixtures are factory pre-wired to accommodate double-ended line-voltage LED tubes (Type B) LED tubes. The fixture is modular allowing the installer to configure the 8Ft variation during install to hold both 2x8Ft or 4x4Ft tubes to increase versability.
When paired with compatible LED retrofit tubes, the Tube Ready Fixture provides end users with a practical lighting solution designed to maximize return on investment through low fixture costs, simplified installation, reduced energy consumption, and ease of future maintenance. The flexible wiring configuration allows contractors and facility managers to select the appropriate LED tube technology for their application while minimizing installation time and simplifying retrofit projects.
The durable steel construction and clean white finish provide a professional appearance suitable for a wide range of commercial, institutional, retail, warehouse, and general-purpose lighting applications.
* Available in 4FT and 8FT configurations
* Pre-wired for maximum installation flexibility
* Compatible with Type B ballast-bypass LED tubes
* Supports single-ended and double-ended line-voltage LED tubes
* Compatible with suitable T8 + T12 LED tubes
* Post-painted white steel body for a clean, professional appearance
* Durable galvanized sheet steel construction
* Suitable for dry and damp locations
* Designed for quick and easy LED retrofit installations
* Helps reduce installation time and labor costs
* Provides flexibility for future tube replacement and maintenance
* ETL Listed
* Damp location
* 5-year warranty on all electronics and housing
Type B - Direct-Wire / Ballast Bypass Designed for use with line-voltage LED T8 tubes that operate directly from the building's electrical supply.
Note: Always verify the LED tube manufacturer's wiring requirements and installation instructions before installation. Type A and Type B tubes may have different wiring configurations and should not be interchanged without confirming compatibility.
